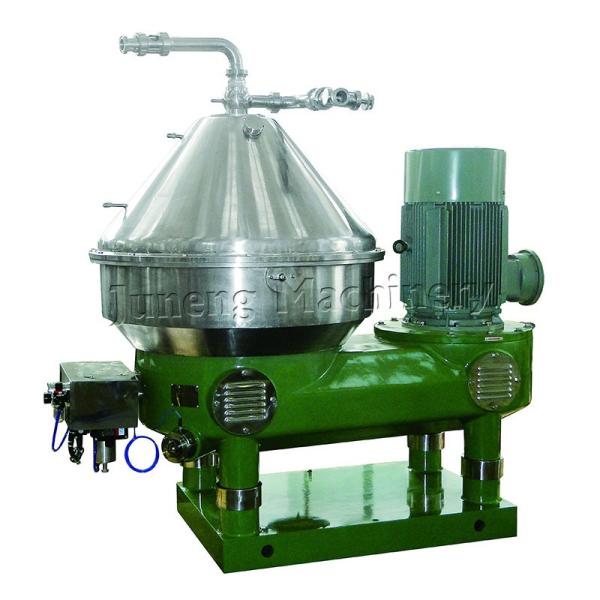

Industrial Milk and Cream Separator with SUS304/SUS316 Material 500-1500L/H Capacity and 220V/380V Voltage

Name: Industrial Milk and Cream Separator with SUS304SUS316 Material 5001500LH Capacity and 220V380V Voltage
Brand: Juneng
Price: 22 USD

China Industrial Milk and Cream Separator with SUS304/SUS316 Material 500-1500L/H Capacity and 220V/380V Voltage wholesale

Place of Origin : Jiangsu, China

Brand Name : Juneng

Certification : CE Certificate

MOQ : 1 set

Price : $22,388-29,850 / set

Voltage : 220V/380V

Power : 4000W

Weight : 520kg

Dimensions : 810*850*1350mm

Material : SUS304/SUS316

Capacity : 500-1500L/H

Function : Liquid-liquid-solid Separation

Processing : Milk Skimming

Model : DHNZ204

Structure : Edge covered with SS304

Discharge : Automatic

Core Components : PLC, Engine, Bearing, Gearbox, Motor, Gear

Rotating Speed : High

Noise Level : Lower

Separating Efficiency : Perfect

Contact Now

Product Description

Product Application

Juneng dairy separator has such features as large capacity, good deoiling performance, high efficiency and lower energy consumption. The advanced inlet and outlet design guarantees soft treatment during the whole separation process, preventing destructive air from entering and ensuring product quality.

The milk has so wide diversity, even the simplest milk sold on the market contains different fat contents. If list, there are so many types of dairy products to be mentioned, such as butter, cheese, quark, yogurt etc.

Main Features

1, High rotating speed
2, Operating stability
3, Completely sealed up of the inlet and outlet system
4, Lower noise
5, Perfect separating affection.

Model	DHNZ204
Material	SS304
Structure	Edge covered with SS304
Function	Liquid-liquid-solid separation
Application	Milk skimming
Capacity	500-1500 liters per hour
Discharge	Automatic

Three phase disc separator

100% Response Rate

Industrial Milk and Cream Separator with SUS304/SUS316 Material 500-1500L/H Capacity and 220V/380V Voltage

Candle filter

100% Response Rate

Decanter centrifuge

100% Response Rate

Oil bleaching system

Disc separator whole system

Horizontal plate filter

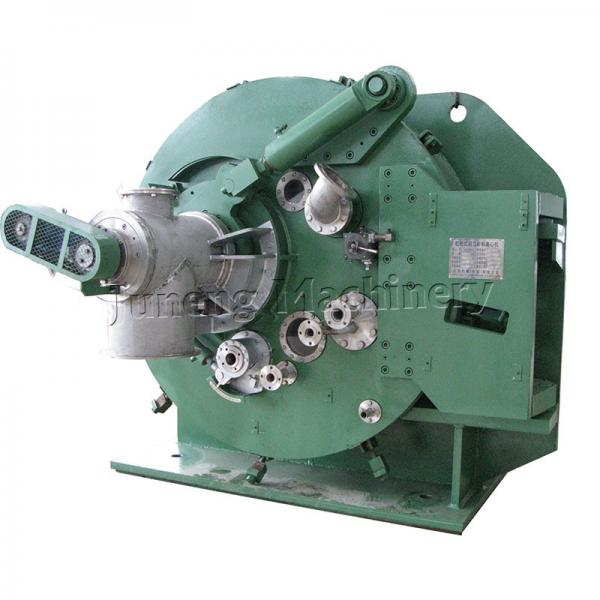

Scraper centrifuge

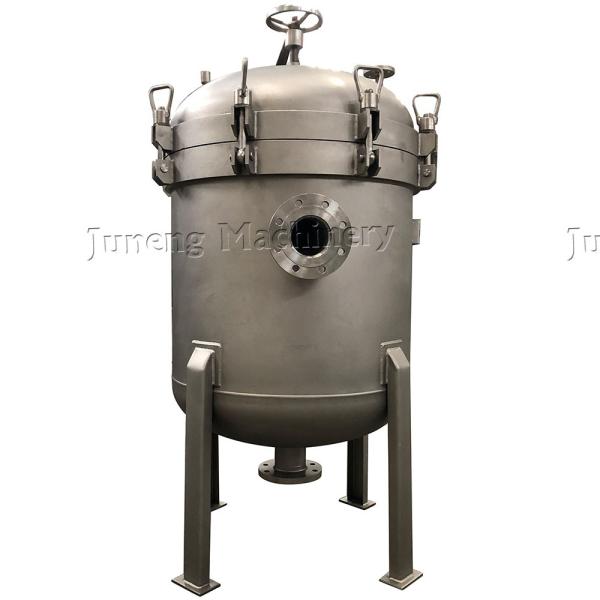

Multi-bags filter

Disc separator directly connected

Detailed Images

Machine Parts

Name: Main Parts of Drum

Brand: Juneng

Original: China

From left to right are discs, drum cover, disc gland, and slide piston.

Machine Parts

Name: Shaft
Brand: Juneng
Original: China

The vertical shaft is to transmit power, is equipped with speed step-up gear (small spiral gear) and hi-speed rotating part.

The cross shaft is to transmit motor power to the vertical shaft and main parts of the drum.

Machine Parts

Name: Assembled Drum
Brand: Juneng
Original: China

The drum is a component to separate material and rotates at high speed, is the heart of the separator.

Machine Parts

Name: Equipment Base
Brand: Juneng
Original: China

Underframe is the main part for supporting the whole separator and connecting base, all four supporting feet of the baseframe are equipped with damping rubber pads, which can isolate vibration between the separator and building very well.

Certifications

Recently years, we achieve plenty of honors and we have obtained various certifications , such as ASME U (Certificate No. : 38793) , ISO 9001:2015 (Certificate No. : CN1299-QC), ISO 14001:2015 (Certificate No.: CN1299-EC), ISO 45001:2018 (Certificate No.: CN1299-SC) , BV and CE .

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging
Size	123 (L) * 456 (W) * 789 (D)
Weight	1.2 T
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
