Industrial Milk Cream Separator with SUS304/SUS316 Material 5000-10000L/H Capacity and One Year Warranty

Name: Industrial Milk Cream Separator with SUS304SUS316 Material 500010000LH Capacity and One Year Warranty
Brand: Juneng
Price: 32 USD

China Industrial Milk Cream Separator with SUS304/SUS316 Material 5000-10000L/H Capacity and One Year Warranty wholesale

Place of Origin : Jiangsu, China

Brand Name : Juneng

Certification : CE Certificate

MOQ : 1 set

Price : $32,000-32,899 / set

Voltage : 380V/50HZ

Power : 15 kw

Weight : 1600 kg

Dimensions : 1800*1200*1750 mm

Material : SUS304/SUS316

Capacity : 5000-10000L/H

Function : Separation

Core Components : PLC, Bearing, Motor

Inlet Pressure : 0.05 Mpa

Outlet Pressure : 0.1-0.4 Mpa

Motor Power : 15 Kw

Rotating Speed : High

Noise Level : Lower

Sealing Type : Completely sealed

Treatment Capacity : 5000-10000L/H

Contact Now

Product Description

Product Application

Juneng dairy separator has such features as large capacity, good deoiling performance, high efficiency and lower energy consumption. The advanced inlet and outlet design guarantees soft treatment during the whole separation process, preventing destructive air from entering and ensuring product quality.

The milk has so wide diversity, even the simplest milk sold on the market contains different fat contents. If list, there are so many types of dairy products to be mentioned, such as butter, cheese, quark, yogurt etc.

Industrial Milk Cream Separator with SUS304/SUS316 Material 5000-10000L/H Capacity and One Year Warranty

Main Features

1, High rotating speed
2, Operating stability
3, Completely sealed up of the inlet and outlet system
4, Lower noise
5, Perfect separating affection.

Model	Treatment capacity (L/H)	Inlet Pressure (Mpa)	Outlet pressure (Mpa)	Motor power (Kw)	Weight (Kg)	Outline dimension (mm)
DHN360	2000-5000	0.05	0.1-0.35	7.5	1200	153011501500
DHN470	5000-10000	0.05	0.1-0.4	15	1600	180012001750
DHN550	10000-20000	0.05	0.1-0.4	22	2300	195015501960
DHN616	25000-35000	0.1	0.3	37	3000	218517282082

Certifications

Detailed Images

Machine Parts

Name: Drum
Brand: Juneng
Original: China

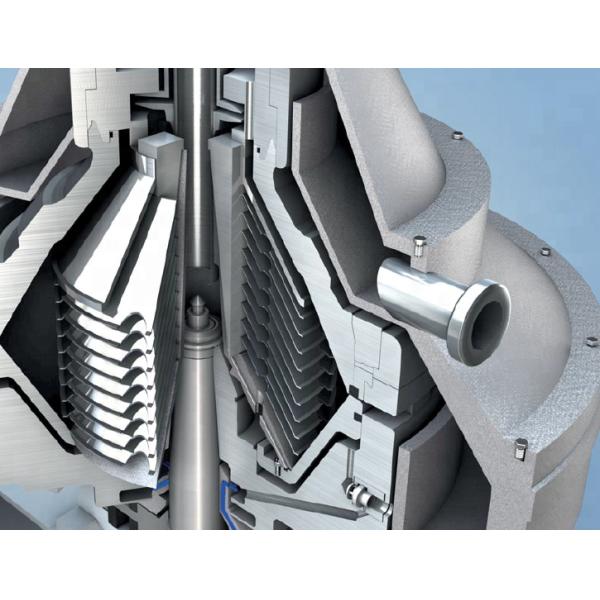

The drum is a component to separate material and rotates at high speed, is the heart of the separator. It gets power by fitting with the vertical shaft through hi-precision taper. Each part of the drum is numbered before shipping, they shall not be interchanged. The disk sets are assembled in sequence on the distributor, the disks and drum cover are held on the drum body by the disk glands. Note that all phase marks of each part must be aligned. So as to guarantee the balance before shipping will not lose. Otherwise never start the separator, so as to prevent operator from hurt.

Main Features

Name: Shaft
Brand: Juneng
Original: China
The vertical shaft is to transmit power, is equipped with speed step-up gear (small helical gear) and hi-speed rotating part. As both the axial and radial direction are supported by elastic bearing, by adjusting the up and down height of the vertical shaft, the drum and centripetal pump, drum and water-inlet housing can reach optimal operation position.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging
Size	123 (L) * 456 (W) * 789 (D)
Weight	1.2 T
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
